入手树莓派2 Model B

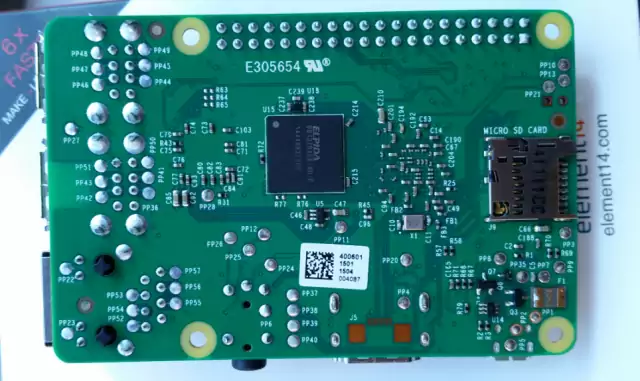

Raspberry Pi 2 Model B正面 Raspberry Pi 2 Model B背面

树莓派 2 Mode B 硬件配置

  • A 900MHz quad-core ARM Cortex-A7 CPU
  • 1GB RAM
  • 4 USB ports
  • 40 GPIO pins
  • Full HDMI port
  • Ethernet port
  • Combined 3.5mm audio jack and composite video
  • Camera interface (CSI)
  • Display interface (DSI)
  • Micro SD card slot
  • VideoCore IV 3D graphics core

Raspberry Pi 2 Mode B一些配置信息

pi@raspi:~ $ lsb_release -a
No LSB modules are available.
Distributor ID: Raspbian
Description:    Raspbian GNU/Linux 11 (bullseye)
Release:        11
Codename:       bullseye
pi@raspi:~ $ cat /proc/cpuinfo
processor       : 0
model name      : ARMv7 Processor rev 5 (v7l)
BogoMIPS        : 38.40
Features        : half thumb fastmult vfp edsp neon vfpv3 tls vfpv4 idiva idivt vfpd32 lpae evtstrm
CPU implementer : 0x41
CPU architecture: 7
CPU variant     : 0x0
CPU part        : 0xc07
CPU revision    : 5

processor       : 1
model name      : ARMv7 Processor rev 5 (v7l)
BogoMIPS        : 38.40
Features        : half thumb fastmult vfp edsp neon vfpv3 tls vfpv4 idiva idivt vfpd32 lpae evtstrm
CPU implementer : 0x41
CPU architecture: 7
CPU variant     : 0x0
CPU part        : 0xc07
CPU revision    : 5

processor       : 2
model name      : ARMv7 Processor rev 5 (v7l)
BogoMIPS        : 38.40
Features        : half thumb fastmult vfp edsp neon vfpv3 tls vfpv4 idiva idivt vfpd32 lpae evtstrm
CPU implementer : 0x41
CPU architecture: 7
CPU variant     : 0x0
CPU part        : 0xc07
CPU revision    : 5

processor       : 3
model name      : ARMv7 Processor rev 5 (v7l)
BogoMIPS        : 38.40
Features        : half thumb fastmult vfp edsp neon vfpv3 tls vfpv4 idiva idivt vfpd32 lpae evtstrm
CPU implementer : 0x41
CPU architecture: 7
CPU variant     : 0x0
CPU part        : 0xc07
CPU revision    : 5

Hardware        : BCM2835
Revision        : a21041
Serial          : 00000000d81b63a8
Model           : Raspberry Pi 2 Model B Rev 1.1
pi@raspi:~ $ free -h
               total        used        free      shared  buff/cache   available
Mem:           921Mi        53Mi       784Mi       0.0Ki        84Mi       818Mi
Swap:           99Mi          0B        99Mi
pi@raspi:~ $ lsblk
NAME        MAJ:MIN RM  SIZE RO TYPE MOUNTPOINT
mmcblk0     179:0    0 29.3G  0 disk
├─mmcblk0p1 179:1    0  256M  0 part /boot
└─mmcblk0p2 179:2    0   29G  0 part /
pi@raspi:~ $
➜  ~ neofetch
  `.::///+:/-.        --///+//-:``    pi@raspi2b
 `+oooooooooooo:   `+oooooooooooo:    ----------
  /oooo++//ooooo:  ooooo+//+ooooo.    OS: Raspbian GNU/Linux 11 (bullseye) armv7l
  `+ooooooo:-:oo-  +o+::/ooooooo:     Host: Raspberry Pi 2 Model B Rev 1.1
   `:oooooooo+``    `.oooooooo+-      Kernel: 6.1.21-v7+
     `:++ooo/.        :+ooo+/.`       Uptime: 18 mins
        ...`  `.----.` ``..           Packages: 624 (dpkg)
     .::::-``:::::::::.`-:::-`        Shell: zsh 5.8
    -:::-`   .:::::::-`  `-:::-       Terminal: /dev/pts/1
   `::.  `.--.`  `` `.---.``.::`      CPU: BCM2835 (4) @ 1.000GHz
       .::::::::`  -::::::::` `       Memory: 70MiB / 921MiB
 .::` .:::::::::- `::::::::::``::.
-:::` ::::::::::.  ::::::::::.`:::-
::::  -::::::::.   `-::::::::  ::::
-::-   .-:::-.``....``.-::-.   -::-
 .. ``       .::::::::.     `..`..
   -:::-`   -::::::::::`  .:::::`
   :::::::` -::::::::::` :::::::.
   .:::::::  -::::::::. ::::::::
    `-:::::`   ..--.`   ::::::.
      `...`  `...--..`  `...`
            .::::::::::
             `.-::::-`
pi@raspi:~ $ screenfetch
    .',;:cc;,'.    .,;::c:,,.    pi@raspi
   ,ooolcloooo:  'oooooccloo:    OS: Raspbian 11 bullseye
   .looooc;;:ol  :oc;;:ooooo'    Kernel: armv7l Linux 6.1.21-v7+
     ;oooooo:      ,ooooooc.     Uptime: 3m
       .,:;'.       .;:;'.       Packages: 592
       .dQ. .d0Q0Q0. '0Q.        Shell: bash 5.1.4
     .0Q0'   'Q0Q0Q'  'Q0Q.      Disk: 1.5G / 30G (6%)
     ''  .odo.    .odo.  ''      CPU: ARMv7 rev 5 (v7l) @ 4x 1GHz
    .  .0Q0Q0Q'  .0Q0Q0Q.  .     RAM: 104MiB / 921MiB
  ,0Q .0Q0Q0Q0Q  'Q0Q0Q0b. 0Q.
  :Q0  Q0Q0Q0Q    'Q0Q0Q0  Q0'
  '0    '0Q0' .0Q0. '0'    'Q'
    .oo.     .0Q0Q0.    .oo.
    'Q0Q0.  '0Q0Q0Q0. .Q0Q0b
     'Q0Q0.  '0Q0Q0' .d0Q0Q'
      'Q0Q'    ..    '0Q.'
            .0Q0Q0Q.
             '0Q0Q'

inxi -F

bbq@raspi2b ~> inxi -F
System:
  Host: raspi2b Kernel: 6.12.20+rpt-rpi-v7 arch: armv7l bits: 32 Console: pty pts/0
    Distro: Raspbian GNU/Linux 12 (bookworm)
Machine:
  Type: ARM System: Raspberry Pi 2 Model B Rev 1.1 details: BCM2835 rev: a21041
    serial: 00000000d81b63a8
CPU:
  Info: quad core model: ARMv7 v7l variant: cortex-a7 bits: 32 type: MCP
  Speed (MHz): avg: 1000 min/max: 600/1000 cores: 1: 1000 2: 1000 3: 1000 4: 1000
Graphics:
  Device-1: bcm2835-hdmi driver: vc4_hdmi v: N/A
  Device-2: bcm2835-vc4 driver: vc4_drm v: N/A
  Display: server: No display server data found. Headless machine? tty: 97x31
  API: OpenGL Message: GL data unavailable in console. Try -G --display
Audio:
  Device-1: bcm2835-hdmi driver: vc4_hdmi
  API: ALSA v: k6.12.20+rpt-rpi-v7 status: kernel-api
Network:
  Device-1: bcm2835-sdhci driver: N/A
  IF: eth0 state: up speed: 100 Mbps duplex: full mac: b8:27:eb:1b:63:a8
  Device-2: Microchip (formerly SMSC) SMSC9512/9514 Fast Ethernet Adapter type: USB
    driver: smsc95xx
  IF: eth0 state: up speed: 100 Mbps duplex: full mac: b8:27:eb:1b:63:a8
  Device-3: Realtek RTL8188CUS 802.11n WLAN Adapter type: USB driver: rtl8192cu
  IF: wlan0 state: up mac: e8:4e:06:1c:3e:67
  IF-ID-1: tailscale0 state: unknown speed: -1 duplex: full mac: N/A
Drives:
  Local Storage: total: 29.28 GiB used: 6.21 GiB (21.2%)
  ID-1: /dev/mmcblk0 type: Removable model: 00000 size: 29.28 GiB
Partition:
  ID-1: / size: 28.29 GiB used: 6.13 GiB (21.7%) fs: ext4 dev: /dev/mmcblk0p2
Swap:
  ID-1: swap-1 type: file size: 512 MiB used: 0 KiB (0.0%) file: /var/swap
Sensors:
  System Temperatures: cpu: 51.9 C mobo: N/A
  Fan Speeds (RPM): N/A
Info:
  Processes: 140 Uptime: 22m Memory: 997.1 MiB used: 232.6 MiB (23.3%) gpu: 76 MiB
  Init: systemd target: multi-user (3) Shell: fish inxi: 3.3.26
bbq@raspi2b ~>

raspinfo

System Information
------------------

Raspberry Pi 2 Model B Rev 1.1
PRETTY_NAME="Raspbian GNU/Linux 12 (bookworm)"
NAME="Raspbian GNU/Linux"
VERSION_ID="12"
VERSION="12 (bookworm)"

Raspberry Pi reference 2024-11-19
Generated using pi-gen, https://github.com/RPi-Distro/pi-gen, b15527e15ba4d9e65126a454bfec2040b909dc1c, stage2

Linux raspi2b 6.12.20+rpt-rpi-v7 #1 SMP Raspbian 1:6.12.20-1+rpt1~bpo12+1 (2025-03-19) armv7l GNU/Linux
Revision	: a21041
Serial		: 00000000d81b63a8
Model		: Raspberry Pi 2 Model B Rev 1.1
Throttled flag  : throttled=0x50000
Camera          : supported=0 detected=0, libcamera interfaces=0

Videocore information
---------------------

Mar 19 2025 18:25:26
Copyright (c) 2012 Broadcom
version ca6e8171a80ea46924ffaa629250bfb482f3a02c (clean) (release) (start)

alloc failures:     0
compactions:        0
legacy block fails: 0


Filesystem information
----------------------
文件系统         1K的块    已用     可用 已用% 挂载点
udev             336952       0   336952    0% /dev
tmpfs             94324    1916    92408    3% /run
/dev/mmcblk0p2 29663128 6422600 21715432   23% /
tmpfs            471604       0   471604    0% /dev/shm
tmpfs              5120      12     5108    1% /run/lock
/dev/mmcblk0p1   522230   85700   436530   17% /boot/firmware
tmpfs             94320       0    94320    0% /run/user/1000

Filename				Type		Size		Used		Priority
/var/swap                               file		524284		0		-2

Package version information
---------------------------
raspberrypi-ui-mods:
  已安装:()
raspberrypi-sys-mods:
  已安装:20250414
openbox:
  已安装:()
lxpanel:
  已安装:()
pcmanfm:
  已安装:()
rpd-plym-splash:
  已安装:()

Networking Information
----------------------


USB Information
---------------

/:  Bus 01.Port 1: Dev 1, Class=root_hub, Driver=dwc_otg/1p, 480M
    |__ Port 1: Dev 2, If 0, Class=Hub, Driver=hub/5p, 480M
        |__ Port 1: Dev 3, If 0, Class=Vendor Specific Class, Driver=smsc95xx, 480M
        |__ Port 3: Dev 4, If 0, Class=Hub, Driver=hub/4p, 480M
        |__ Port 4: Dev 5, If 0, Class=Vendor Specific Class, Driver=rtl8192cu, 480M

Display Information
-------------------

Running (F)KMS, console

/sys/class/drm/card0-HDMI-A-1

/sys/class/drm/card0-Writeback-1


Connector 0 (33) HDMI-A-1 (disconnected)
  Encoder 0 (32) TMDS



/sys/kernel/debug/dri/0/state:
plane[41]: plane-0
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=0
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[60]: plane-1
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=0
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[72]: plane-2
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=0
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[84]: plane-3
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=0
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[96]: plane-4
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=1
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[107]: plane-5
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=2
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[118]: plane-6
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=3
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[129]: plane-7
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=4
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[140]: plane-8
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=5
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[151]: plane-9
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=6
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[162]: plane-10
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=7
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[173]: plane-11
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=8
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[184]: plane-12
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=9
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[195]: plane-13
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=a
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[206]: plane-14
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=b
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[217]: plane-15
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=c
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[228]: plane-16
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=d
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[239]: plane-17
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=e
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[250]: plane-18
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=f
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[261]: plane-19
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=10
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[272]: plane-20
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=1
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[283]: plane-21
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=2
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[294]: plane-22
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=3
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[305]: plane-23
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=4
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[316]: plane-24
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=5
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[327]: plane-25
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=6
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[338]: plane-26
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=7
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[349]: plane-27
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=8
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[360]: plane-28
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=9
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[371]: plane-29
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=a
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[382]: plane-30
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=b
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[393]: plane-31
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=c
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[404]: plane-32
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=d
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[415]: plane-33
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=e
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[426]: plane-34
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=f
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[437]: plane-35
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=10
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[448]: plane-36
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=11
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[459]: plane-37
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=12
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[470]: plane-38
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=13
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[481]: plane-39
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=14
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[492]: plane-40
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=15
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[503]: plane-41
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=16
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[514]: plane-42
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=17
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[525]: plane-43
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=18
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[536]: plane-44
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=19
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[547]: plane-45
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=1a
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[558]: plane-46
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=1b
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[569]: plane-47
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=1c
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[580]: plane-48
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=1d
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[591]: plane-49
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=1e
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[602]: plane-50
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=1f
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[613]: plane-51
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=20
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[624]: plane-52
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=11
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[635]: plane-53
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=11
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[646]: plane-54
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=11
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
plane[657]: plane-55
	crtc=(null)
	fb=0
	crtc-pos=0x0+0+0
	src-pos=0.000000x0.000000+0.000000+0.000000
	rotation=1
	normalized-zpos=11
	color-encoding=ITU-R BT.709 YCbCr
	color-range=YCbCr limited range
	color_mgmt_changed=0
crtc[52]: txp
	enable=0
	active=0
	self_refresh_active=0
	planes_changed=0
	mode_changed=0
	active_changed=0
	connectors_changed=0
	color_mgmt_changed=0
	plane_mask=0
	connector_mask=0
	encoder_mask=0
	mode: "": 0 0 0 0 0 0 0 0 0 0 0x0 0x0
crtc[71]: pixelvalve-0
	enable=0
	active=0
	self_refresh_active=0
	planes_changed=0
	mode_changed=0
	active_changed=0
	connectors_changed=0
	color_mgmt_changed=0
	plane_mask=0
	connector_mask=0
	encoder_mask=0
	mode: "": 0 0 0 0 0 0 0 0 0 0 0x0 0x0
crtc[83]: pixelvalve-1
	enable=0
	active=0
	self_refresh_active=0
	planes_changed=0
	mode_changed=0
	active_changed=0
	connectors_changed=0
	color_mgmt_changed=0
	plane_mask=0
	connector_mask=0
	encoder_mask=0
	mode: "": 0 0 0 0 0 0 0 0 0 0 0x0 0x0
crtc[95]: pixelvalve-2
	enable=0
	active=0
	self_refresh_active=0
	planes_changed=0
	mode_changed=0
	active_changed=0
	connectors_changed=0
	color_mgmt_changed=0
	plane_mask=0
	connector_mask=0
	encoder_mask=0
	mode: "": 0 0 0 0 0 0 0 0 0 0 0x0 0x0
connector[33]: HDMI-A-1
	crtc=(null)
	self_refresh_aware=0
	max_requested_bpc=8
	colorspace=Default
	broadcast_rgb=Automatic
	is_limited_range=n
	output_bpc=0
	output_format=RGB
	tmds_char_rate=0
connector[58]: Writeback-1
	crtc=(null)
	self_refresh_aware=0
	max_requested_bpc=0
	colorspace=Default
HVS State
	Core Clock Rate: 0
	Channel 0
		in use=0
		load=0
	Channel 1
		in use=0
		load=0
	Channel 2
		in use=0
		load=0



Audio Information
-------------------

**** List of PLAYBACK Hardware Devices ****
card 0: Headphones [bcm2835 Headphones], device 0: bcm2835 Headphones [bcm2835 Headphones]
  Subdevices: 8/8
  Subdevice #0: subdevice #0
  Subdevice #1: subdevice #1
  Subdevice #2: subdevice #2
  Subdevice #3: subdevice #3
  Subdevice #4: subdevice #4
  Subdevice #5: subdevice #5
  Subdevice #6: subdevice #6
  Subdevice #7: subdevice #7
card 1: vc4hdmi [vc4-hdmi], device 0: MAI PCM i2s-hifi-0 [MAI PCM i2s-hifi-0]
  Subdevices: 1/1
  Subdevice #0: subdevice #0

null
    Discard all samples (playback) or generate zero samples (capture)
hw:CARD=Headphones,DEV=0
    bcm2835 Headphones, bcm2835 Headphones
    Direct hardware device without any conversions
plughw:CARD=Headphones,DEV=0
    bcm2835 Headphones, bcm2835 Headphones
    Hardware device with all software conversions
default:CARD=Headphones
    bcm2835 Headphones, bcm2835 Headphones
    Default Audio Device
sysdefault:CARD=Headphones
    bcm2835 Headphones, bcm2835 Headphones
    Default Audio Device
dmix:CARD=Headphones,DEV=0
    bcm2835 Headphones, bcm2835 Headphones
    Direct sample mixing device
hw:CARD=vc4hdmi,DEV=0
    vc4-hdmi, MAI PCM i2s-hifi-0
    Direct hardware device without any conversions
plughw:CARD=vc4hdmi,DEV=0
    vc4-hdmi, MAI PCM i2s-hifi-0
    Hardware device with all software conversions
default:CARD=vc4hdmi
    vc4-hdmi, MAI PCM i2s-hifi-0
    Default Audio Device
sysdefault:CARD=vc4hdmi
    vc4-hdmi, MAI PCM i2s-hifi-0
    Default Audio Device
hdmi:CARD=vc4hdmi,DEV=0
    vc4-hdmi, MAI PCM i2s-hifi-0
    HDMI Audio Output
dmix:CARD=vc4hdmi,DEV=0
    vc4-hdmi, MAI PCM i2s-hifi-0
    Direct sample mixing device


pactl not installed

config.txt
----------

aphy_params_current=819
arm_boost=1
arm_freq=1000
arm_freq_min=600
audio_pwm_mode=514
auto_initramfs=1
camera_auto_detect=1
config_hdmi_boost=5
core_freq=500
disable_auto_turbo=1
disable_commandline_tags=2
disable_fw_kms_setup=1
disable_l2cache=1
disable_overscan=1
display_auto_detect=1
display_hdmi_rotate=-1
display_lcd_rotate=-1
dphy_params_current=1091
dvfs=3
enable_tvout=1
enable_uart=1
force_eeprom_read=1
force_pwm_open=1
framebuffer_ignore_alpha=1
framebuffer_swap=1
hdmi_enable_4kp60=-1
init_uart_clock=0x2dc6c00
initial_turbo=60
lcd_framerate=60
mask_gpu_interrupt0=3072
mask_gpu_interrupt1=26370
max_framebuffers=2
over_voltage=2
over_voltage_avs=0x1b774
over_voltage_sdram_p=2
pause_burst_frames=1
pciex4_reset=1
pmic_turbo_threshold=600
program_serial_random=1
sdram_freq=500
sdram_schmoo=0x2000020
total_mem=1024
hdmi_force_cec_address:0=65535
hdmi_force_cec_address:1=65535
hdmi_pixel_freq_limit:0=0x9a7ec80
device_tree=-
overlay_prefix=overlays/
hdmi_cvt:0=
hdmi_cvt:1=
hdmi_edid_filename:0=
hdmi_edid_filename:1=
hdmi_timings:0=
hdmi_timings:1=

cmdline.txt
-----------
coherent_pool=1M snd_bcm2835.enable_headphones=0 cgroup_disable=memory snd_bcm2835.enable_headphones=1 snd_bcm2835.enable_hdmi=1 snd_bcm2835.enable_hdmi=0  vc_mem.mem_base=0x3ec00000 vc_mem.mem_size=0x40000000  console=ttyAMA0,115200 console=tty1 root=PARTUUID=1b26aadb-02 rootfstype=ext4 fsck.repair=yes rootwait cfg80211.ieee80211_regdom=GB

pin configuration
-----------------

 0: ip    -- | hi // ID_SDA/GPIO0 = input
 1: ip    -- | hi // ID_SCL/GPIO1 = input
 2: ip    -- | hi // GPIO2 = input
 3: ip    -- | hi // GPIO3 = input
 4: ip    -- | hi // GPIO4 = input
 5: ip    -- | hi // GPIO5 = input
 6: ip    -- | hi // GPIO6 = input
 7: ip    -- | hi // GPIO7 = input
 8: ip    -- | hi // GPIO8 = input
 9: ip    -- | lo // GPIO9 = input
10: ip    -- | lo // GPIO10 = input
11: ip    -- | lo // GPIO11 = input
12: ip    -- | lo // GPIO12 = input
13: ip    -- | lo // GPIO13 = input
14: a0    -- | hi // GPIO14 = TXD0
15: a0    -- | hi // GPIO15 = RXD0
16: ip    -- | lo // GPIO16 = input
17: ip    -- | lo // GPIO17 = input
18: ip    -- | lo // GPIO18 = input
19: ip    -- | lo // GPIO19 = input
20: ip    -- | lo // GPIO20 = input
21: ip    -- | lo // GPIO21 = input
22: ip    -- | lo // GPIO22 = input
23: ip    -- | lo // GPIO23 = input
24: ip    -- | lo // GPIO24 = input
25: ip    -- | lo // GPIO25 = input
26: ip    -- | lo // GPIO26 = input
27: ip    -- | lo // GPIO27 = input
28: ip    -- | hi // SDA0/GPIO28 = input
29: ip    -- | hi // SCL0/GPIO29 = input
30: ip    -- | lo // NC/GPIO30 = input
31: op -- -- | hi // LAN_RUN/GPIO31 = output
32: op -- -- | lo // CAM_GPIO1/GPIO32 = output
33: ip    -- | lo // NC/GPIO33 = input
34: ip    -- | hi // NC/GPIO34 = input
35: ip    -- | hi // PWR_LOW_N/GPIO35 = input
36: ip    -- | hi // NC/GPIO36 = input
37: ip    -- | lo // NC/GPIO37 = input
38: op -- -- | hi // USB_LIMIT/GPIO38 = output
39: ip    -- | lo // NC/GPIO39 = input
40: a0    -- | lo // PWM0_OUT/GPIO40 = PWM0
41: op -- -- | lo // CAM_GPIO0/GPIO41 = output
42: op -- -- | hi // SMPS_SCL/GPIO42 = output
43: ip    -- | hi // SMPS_SDA/GPIO43 = input
44: a0    -- | hi // ETH_CLK/GPIO44 = GPCLK1
45: a0    -- | lo // PWM1_OUT/GPIO45 = PWM1
46: ip    -- | hi // HDMI_HPD_N/GPIO46 = input
47: op -- -- | lo // STATUS_LED/GPIO47 = output
48: a0    -- | lo // SD_CLK_R/GPIO48 = SD0_CLK
49: a0    -- | hi // SD_CMD_R/GPIO49 = SD0_CMD
50: a0    -- | hi // SD_DATA0_R/GPIO50 = SD0_DAT0
51: a0    -- | hi // SD_DATA1_R/GPIO51 = SD0_DAT1
52: a0    -- | hi // SD_DATA2_R/GPIO52 = SD0_DAT2
53: a0    -- | hi // SD_DATA3_R/GPIO53 = SD0_DAT3

vcdbg log messages
------------------

000886.607: boot-part: 0 fs-type: 0
000886.622: boot-part: 0 fs-type: 3
001032.622: brfs: File read: /mfs/sd/config.txt
001033.578: brfs: File read: 1271 bytes
001068.346: HDMI0:EDID error reading EDID block 0 attempt 0
001069.611: HDMI0:EDID error reading EDID block 0 attempt 1
001070.878: HDMI0:EDID error reading EDID block 0 attempt 2
001072.142: HDMI0:EDID error reading EDID block 0 attempt 3
001073.409: HDMI0:EDID error reading EDID block 0 attempt 4
001074.673: HDMI0:EDID error reading EDID block 0 attempt 5
001075.939: HDMI0:EDID error reading EDID block 0 attempt 6
001077.204: HDMI0:EDID error reading EDID block 0 attempt 7
001078.470: HDMI0:EDID error reading EDID block 0 attempt 8
001079.734: HDMI0:EDID error reading EDID block 0 attempt 9
001080.758: HDMI0:EDID giving up on reading EDID block 0
001086.856: brfs: File read: /mfs/sd/config.txt
001087.913: gpioman: gpioman_get_pin_num: pin LEDS_PWR_OK not defined
001102.615: gpioman: gpioman_get_pin_num: pin WL_LPO_CLK not defined
001102.640: gpioman: gpioman_get_pin_num: pin BT_ON not defined
001102.660: gpioman: gpioman_get_pin_num: pin WL_ON not defined
001588.022: gpioman: gpioman_get_pin_num: pin DISPLAY_DSI_PORT not defined
001588.836: gpioman: gpioman_get_pin_num: pin DISPLAY_DSI_PORT not defined
001589.798: gpioman: gpioman_get_pin_num: pin LEDS_PWR_OK not defined
001589.854: *** Restart logging
001589.880: brfs: File read: 1271 bytes
001591.839: hdmi: HDMI0:EDID error reading EDID block 0 attempt 0
001593.110: hdmi: HDMI0:EDID error reading EDID block 0 attempt 1
001594.378: hdmi: HDMI0:EDID error reading EDID block 0 attempt 2
001595.648: hdmi: HDMI0:EDID error reading EDID block 0 attempt 3
001596.917: hdmi: HDMI0:EDID error reading EDID block 0 attempt 4
001598.188: hdmi: HDMI0:EDID error reading EDID block 0 attempt 5
001599.456: hdmi: HDMI0:EDID error reading EDID block 0 attempt 6
001600.726: hdmi: HDMI0:EDID error reading EDID block 0 attempt 7
001601.995: hdmi: HDMI0:EDID error reading EDID block 0 attempt 8
001603.265: hdmi: HDMI0:EDID error reading EDID block 0 attempt 9
001604.291: hdmi: HDMI0:EDID giving up on reading EDID block 0
001604.625: hdmi: HDMI0:EDID error reading EDID block 0 attempt 0
001605.894: hdmi: HDMI0:EDID error reading EDID block 0 attempt 1
001607.163: hdmi: HDMI0:EDID error reading EDID block 0 attempt 2
001608.433: hdmi: HDMI0:EDID error reading EDID block 0 attempt 3
001609.702: hdmi: HDMI0:EDID error reading EDID block 0 attempt 4
001610.972: hdmi: HDMI0:EDID error reading EDID block 0 attempt 5
001612.240: hdmi: HDMI0:EDID error reading EDID block 0 attempt 6
001613.510: hdmi: HDMI0:EDID error reading EDID block 0 attempt 7
001614.779: hdmi: HDMI0:EDID error reading EDID block 0 attempt 8
001616.049: hdmi: HDMI0:EDID error reading EDID block 0 attempt 9
001617.075: hdmi: HDMI0:EDID giving up on reading EDID block 0
001617.120: hdmi: HDMI:hdmi_get_state is deprecated, use hdmi_get_display_state instead
001617.143: HDMI0: hdmi_pixel_encoding: 162000000
001617.412: vec: vec_middleware_power_on: vec_base: 0x7e806000 rev-id 0x00002708 @ vec: 0x7e806100 @ 0x00000420 enc: 0x7e806060 @ 0x00000220 cgmsae: 0x7e80605c @ 0x00000000
001998.057: brfs: File read: /mfs/sd/initramfs7
001998.081: Loaded 'initramfs7' to 0x0 size 0x5fdfe7
002005.308: initramfs loaded to 0x2ea02000 (size 0x5fdfe7)
002014.979: dtb_file 'bcm2709-rpi-2-b.dtb'
002015.004: brfs: File read: 6283239 bytes
002018.987: brfs: File read: /mfs/sd/bcm2709-rpi-2-b.dtb
002019.010: Loaded 'bcm2709-rpi-2-b.dtb' to 0x100 size 0x7e5a
002033.790: brfs: File read: 32346 bytes
002045.311: brfs: File read: /mfs/sd/overlays/overlay_map.dtb
002085.724: brfs: File read: 5555 bytes
002088.952: brfs: File read: /mfs/sd/config.txt
002089.109: dtparam: audio=on
002096.019: brfs: File read: 1271 bytes
002112.941: brfs: File read: /mfs/sd/overlays/vc4-kms-v3d.dtbo
002158.467: Loaded overlay 'vc4-kms-v3d'
002260.126: brfs: File read: 2760 bytes
002262.119: brfs: File read: /mfs/sd/cmdline.txt
002262.179: Read command line from file 'cmdline.txt':
002262.200: 'console=serial0,115200 console=tty1 root=PARTUUID=1b26aadb-02 rootfstype=ext4 fsck.repair=yes rootwait cfg80211.ieee80211_regdom=GB'
002605.780: gpioman: gpioman_get_pin_num: pin WL_ON not defined
002626.550: brfs: File read: 131 bytes
003086.727: brfs: File read: /mfs/sd/kernel7.img
003086.752: Loaded 'kernel7.img' to 0x8000 size 0x75cd08
003086.789: Device tree loaded to 0x2e9f9c00 (size 0x8384)
003086.857: gpioman: gpioman_get_pin_num: pin EMMC_ENABLE not defined
003089.932: gpioman: gpioman_get_pin_num: pin SDCARD_CONTROL_POWER not defined
006371.176: vchiq_core: vchiq_init_state: slot_zero = 0xde980000, is_master = 1

dmesg log
---------

[    0.000000] Booting Linux on physical CPU 0xf00
[    0.000000] Linux version 6.12.20+rpt-rpi-v7 ([email protected]) (arm-linux-gnueabihf-gcc-12 (Raspbian 12.2.0-14+rpi1) 12.2.0, GNU ld (GNU Binutils for Raspbian) 2.40) #1 SMP Raspbian 1:6.12.20-1+rpt1~bpo12+1 (2025-03-19)
[    0.000000] CPU: ARMv7 Processor [410fc075] revision 5 (ARMv7), cr=10c5387d
[    0.000000] CPU: div instructions available: patching division code
[    0.000000] CPU: PIPT / VIPT nonaliasing data cache, VIPT aliasing instruction cache
[    0.000000] OF: fdt: Machine model: Raspberry Pi 2 Model B Rev 1.1
[    0.000000] random: crng init done
[    0.000000] Memory policy: Data cache writealloc
[    0.000000] Reserved memory: created CMA memory pool at 0x1e800000, size 256 MiB
[    0.000000] OF: reserved mem: initialized node linux,cma, compatible id shared-dma-pool
[    0.000000] OF: reserved mem: 0x1e800000..0x2e7fffff (262144 KiB) map reusable linux,cma
[    0.000000] Zone ranges:
[    0.000000]   DMA      [mem 0x0000000000000000-0x000000003b3fffff]
[    0.000000]   Normal   empty
[    0.000000] Movable zone start for each node
[    0.000000] Early memory node ranges
[    0.000000]   node   0: [mem 0x0000000000000000-0x000000003b3fffff]
[    0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x000000003b3fffff]
[    0.000000] percpu: Embedded 19 pages/cpu s45644 r8192 d23988 u77824
[    0.000000] pcpu-alloc: s45644 r8192 d23988 u77824 alloc=19*4096
[    0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
[    0.000000] Kernel command line: coherent_pool=1M snd_bcm2835.enable_headphones=0 cgroup_disable=memory snd_bcm2835.enable_headphones=1 snd_bcm2835.enable_hdmi=1 snd_bcm2835.enable_hdmi=0  vc_mem.mem_base=0x3ec00000 vc_mem.mem_size=0x40000000  console=ttyAMA0,115200 console=tty1 root=PARTUUID=1b26aadb-02 rootfstype=ext4 fsck.repair=yes rootwait cfg80211.ieee80211_regdom=GB
[    0.000000] cgroup: Disabling memory control group subsystem
[    0.000000] Dentry cache hash table entries: 131072 (order: 7, 524288 bytes, linear)
[    0.000000] Inode-cache hash table entries: 65536 (order: 6, 262144 bytes, linear)
[    0.000000] Built 1 zonelists, mobility grouping on.  Total pages: 242688
[    0.000000] mem auto-init: stack:all(zero), heap alloc:off, heap free:off
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[    0.000000] ftrace: allocating 37255 entries in 110 pages
[    0.000000] ftrace: allocated 110 pages with 5 groups
[    0.000000] rcu: Hierarchical RCU implementation.
[    0.000000] 	Rude variant of Tasks RCU enabled.
[    0.000000] 	Tracing variant of Tasks RCU enabled.
[    0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 10 jiffies.
[    0.000000] RCU Tasks Rude: Setting shift to 2 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=4.
[    0.000000] RCU Tasks Trace: Setting shift to 2 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=4.
[    0.000000] NR_IRQS: 16, nr_irqs: 16, preallocated irqs: 16
[    0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[    0.000000] arch_timer: cp15 timer(s) running at 19.20MHz (phys).
[    0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x46d987e47, max_idle_ns: 440795202767 ns
[    0.000002] sched_clock: 56 bits at 19MHz, resolution 52ns, wraps every 4398046511078ns
[    0.000015] Switching to timer-based delay loop, resolution 52ns
[    0.000350] Console: colour dummy device 80x30
[    0.000369] printk: legacy console [tty1] enabled
[    0.000969] Calibrating delay loop (skipped), value calculated using timer frequency.. 38.40 BogoMIPS (lpj=192000)
[    0.001011] CPU: Testing write buffer coherency: ok
[    0.001079] pid_max: default: 32768 minimum: 301
[    0.001189] LSM: initializing lsm=capability
[    0.001403] Mount-cache hash table entries: 2048 (order: 1, 8192 bytes, linear)
[    0.001445] Mountpoint-cache hash table entries: 2048 (order: 1, 8192 bytes, linear)
[    0.002732] CPU0: update cpu_capacity 1024
[    0.002780] CPU0: thread -1, cpu 0, socket 15, mpidr 80000f00
[    0.090410] Setting up static identity map for 0x100000 - 0x10003c
[    0.100170] rcu: Hierarchical SRCU implementation.
[    0.100198] rcu: 	Max phase no-delay instances is 1000.
[    0.100563] Timer migration: 1 hierarchy levels; 8 children per group; 1 crossnode level
[    0.110710] smp: Bringing up secondary CPUs ...
[    0.160613] CPU1: update cpu_capacity 1024
[    0.160631] CPU1: thread -1, cpu 1, socket 15, mpidr 80000f01
[    0.210653] CPU2: update cpu_capacity 1024
[    0.210671] CPU2: thread -1, cpu 2, socket 15, mpidr 80000f02
[    0.260717] CPU3: update cpu_capacity 1024
[    0.260735] CPU3: thread -1, cpu 3, socket 15, mpidr 80000f03
[    0.260858] smp: Brought up 1 node, 4 CPUs
[    0.260964] SMP: Total of 4 processors activated (153.60 BogoMIPS).
[    0.260987] CPU: All CPU(s) started in HYP mode.
[    0.261004] CPU: Virtualization extensions available.
[    0.261816] Memory: 670984K/970752K available (11264K kernel code, 1513K rwdata, 3440K rodata, 1024K init, 376K bss, 34700K reserved, 262144K cma-reserved)
[    0.262487] devtmpfs: initialized
[    0.273117] VFP support v0.3: implementor 41 architecture 2 part 30 variant 7 rev 5
[    0.273404] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 19112604462750000 ns
[    0.273471] futex hash table entries: 1024 (order: 4, 65536 bytes, linear)
[    0.282346] pinctrl core: initialized pinctrl subsystem
[    0.283835] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[    0.285805] DMA: preallocated 1024 KiB pool for atomic coherent allocations
[    0.290220] audit: initializing netlink subsys (disabled)
[    0.290675] audit: type=2000 audit(0.290:1): state=initialized audit_enabled=0 res=1
[    0.291280] thermal_sys: Registered thermal governor 'step_wise'
[    0.291604] hw-breakpoint: found 5 (+1 reserved) breakpoint and 4 watchpoint registers.
[    0.291659] hw-breakpoint: maximum watchpoint size is 8 bytes.
[    0.291985] Serial: AMBA PL011 UART driver
[    0.297389] bcm2835-mbox 3f00b880.mailbox: mailbox enabled
[    0.310688] raspberrypi-firmware soc:firmware: Attached to firmware from 2025-03-19T18:25:26, variant start
[    0.320706] raspberrypi-firmware soc:firmware: Firmware hash is ca6e8171a80ea46924ffaa629250bfb482f3a02c
[    0.333903] kprobes: kprobe jump-optimization is enabled. All kprobes are optimized if possible.
[    0.342844] bcm2835-dma 3f007000.dma-controller: DMA legacy API manager, dmachans=0x1
[    0.344650] SCSI subsystem initialized
[    0.344897] usbcore: registered new interface driver usbfs
[    0.344960] usbcore: registered new interface driver hub
[    0.345027] usbcore: registered new device driver usb
[    0.345432] pps_core: LinuxPPS API ver. 1 registered
[    0.345461] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <[email protected]>
[    0.345506] PTP clock support registered
[    0.347748] clocksource: Switched to clocksource arch_sys_counter
[    0.348272] VFS: Disk quotas dquot_6.6.0
[    0.348327] VFS: Dquot-cache hash table entries: 1024 (order 0, 4096 bytes)
[    0.360566] NET: Registered PF_INET protocol family
[    0.360888] IP idents hash table entries: 16384 (order: 5, 131072 bytes, linear)
[    0.364652] tcp_listen_portaddr_hash hash table entries: 512 (order: 0, 4096 bytes, linear)
[    0.364734] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[    0.364821] TCP established hash table entries: 8192 (order: 3, 32768 bytes, linear)
[    0.364918] TCP bind hash table entries: 8192 (order: 5, 131072 bytes, linear)
[    0.365170] TCP: Hash tables configured (established 8192 bind 8192)
[    0.365328] UDP hash table entries: 512 (order: 2, 16384 bytes, linear)
[    0.365408] UDP-Lite hash table entries: 512 (order: 2, 16384 bytes, linear)
[    0.365661] NET: Registered PF_UNIX/PF_LOCAL protocol family
[    0.366332] RPC: Registered named UNIX socket transport module.
[    0.366374] RPC: Registered udp transport module.
[    0.366392] RPC: Registered tcp transport module.
[    0.366410] RPC: Registered tcp-with-tls transport module.
[    0.366428] RPC: Registered tcp NFSv4.1 backchannel transport module.
[    0.368373] Trying to unpack rootfs image as initramfs...
[    0.917399] Freeing initrd memory: 6136K
[    1.653132] Initialise system trusted keyrings
[    1.653564] workingset: timestamp_bits=14 max_order=18 bucket_order=4
[    1.654471] NFS: Registering the id_resolver key type
[    1.654533] Key type id_resolver registered
[    1.654554] Key type id_legacy registered
[    1.654596] nfs4filelayout_init: NFSv4 File Layout Driver Registering...
[    1.654621] nfs4flexfilelayout_init: NFSv4 Flexfile Layout Driver Registering...
[    1.655389] Key type asymmetric registered
[    1.655424] Asymmetric key parser 'x509' registered
[    1.655534] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 247)
[    1.655569] io scheduler mq-deadline registered
[    1.655590] io scheduler kyber registered
[    1.655651] io scheduler bfq registered
[    1.657519] pinctrl-bcm2835 3f200000.gpio: GPIO_OUT persistence: yes
[    1.672037] ledtrig-cpu: registered to indicate activity on CPUs
[    1.673731] simple-framebuffer 3eaa9000.framebuffer: framebuffer at 0x3eaa9000, 0x151800 bytes
[    1.673809] simple-framebuffer 3eaa9000.framebuffer: format=a8r8g8b8, mode=720x480x32, linelength=2880
[    1.677478] Console: switching to colour frame buffer device 90x30
[    1.682202] simple-framebuffer 3eaa9000.framebuffer: fb0: simplefb registered!
[    1.688193] bcm2835-rng 3f104000.rng: hwrng registered
[    1.690210] vc-mem: phys_addr:0x00000000 mem_base=0x3ec00000 mem_size:0x40000000(1024 MiB)
[    1.705041] brd: module loaded
[    1.713730] loop: module loaded
[    1.716095] Loading iSCSI transport class v2.0-870.
[    1.719307] usbcore: registered new interface driver lan78xx
[    1.721108] usbcore: registered new interface driver smsc95xx
[    1.722779] dwc_otg: version 3.00a 10-AUG-2012 (platform bus)
[    2.452405] Core Release: 2.80a
[    2.454064] Setting default values for core params
[    2.455719] Finished setting default values for core params
[    2.657575] Using Buffer DMA mode
[    2.659180] Periodic Transfer Interrupt Enhancement - disabled
[    2.660798] Multiprocessor Interrupt Enhancement - disabled
[    2.662444] OTG VER PARAM: 0, OTG VER FLAG: 0
[    2.664137] Dedicated Tx FIFOs mode

[    2.668060] WARN::dwc_otg_hcd_init:1072: FIQ DMA bounce buffers: virt = 9e904000 dma = 0xde904000 len=9024
[    2.672901] FIQ FSM acceleration enabled for :
               Non-periodic Split Transactions
               Periodic Split Transactions
               High-Speed Isochronous Endpoints
               Interrupt/Control Split Transaction hack enabled
[    2.680385] dwc_otg: Microframe scheduler enabled

[    2.680535] WARN::hcd_init_fiq:457: FIQ on core 1

[    2.683278] WARN::hcd_init_fiq:458: FIQ ASM at 808d8cb0 length 36

[    2.686034] WARN::hcd_init_fiq:496: MPHI regs_base at bb810000
[    2.688852] dwc_otg 3f980000.usb: DWC OTG Controller
[    2.690355] dwc_otg 3f980000.usb: new USB bus registered, assigned bus number 1
[    2.691886] dwc_otg 3f980000.usb: irq 89, io mem 0x00000000
[    2.693389] Init: Port Power? op_state=1
[    2.694836] Init: Power Port (0)
[    2.696536] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 6.12
[    2.699505] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[    2.701066] usb usb1: Product: DWC OTG Controller
[    2.702601] usb usb1: Manufacturer: Linux 6.12.20+rpt-rpi-v7 dwc_otg_hcd
[    2.704177] usb usb1: SerialNumber: 3f980000.usb
[    2.706453] hub 1-0:1.0: USB hub found
[    2.708072] hub 1-0:1.0: 1 port detected
[    2.710126] dwc_otg: FIQ enabled
[    2.710140] dwc_otg: NAK holdoff enabled
[    2.710148] dwc_otg: FIQ split-transaction FSM enabled
[    2.710163] Module dwc_common_port init
[    2.710495] usbcore: registered new interface driver usb-storage
[    2.712275] mousedev: PS/2 mouse device common for all mice
[    2.715725] sdhci: Secure Digital Host Controller Interface driver
[    2.717306] sdhci: Copyright(c) Pierre Ossman
[    2.719074] sdhci-pltfm: SDHCI platform and OF driver helper
[    2.720698] hid: raw HID events driver (C) Jiri Kosina
[    2.722343] usbcore: registered new interface driver usbhid
[    2.723912] usbhid: USB HID core driver
[    2.729620] hw perfevents: enabled with armv7_cortex_a7 PMU driver, 5 (8000000f) counters available
[    2.733784] Initializing XFRM netlink socket
[    2.735470] NET: Registered PF_PACKET protocol family
[    2.737165] Key type dns_resolver registered
[    2.739023] Registering SWP/SWPB emulation handler
[    2.766570] registered taskstats version 1
[    2.768451] Loading compiled-in X.509 certificates
[    2.780309] Key type .fscrypt registered
[    2.781922] Key type fscrypt-provisioning registered
[    2.791123] uart-pl011 3f201000.serial: cts_event_workaround enabled
[    2.793113] 3f201000.serial: ttyAMA0 at MMIO 0x3f201000 (irq = 114, base_baud = 0) is a PL011 rev2
[    2.796184] printk: legacy console [ttyAMA0] enabled
[    3.938030] Indeed it is in host mode hprt0 = 00021501
[    3.939995] bcm2835-wdt bcm2835-wdt: Broadcom BCM2835 watchdog timer
[    3.953517] bcm2835-power bcm2835-power: Broadcom BCM2835 power domains driver
[    3.963543] of_cfs_init
[    3.967802] of_cfs_init: OK
[    3.972822] clk: Disabling unused clocks
[    3.978648] PM: genpd: Disabling unused power domains
[    4.044711] sdhost-bcm2835 3f202000.mmc: loaded - DMA enabled (>1)
[    4.057653] Freeing unused kernel image (initmem) memory: 1024K
[    4.065556] Run /init as init process
[    4.070812]   with arguments:
[    4.070822]     /init
[    4.070830]   with environment:
[    4.070838]     HOME=/
[    4.070846]     TERM=linux
[    4.139988] usb 1-1: new high-speed USB device number 2 using dwc_otg
[    4.144771] mmc0: host does not support reading read-only switch, assuming write-enable
[    4.148436] Indeed it is in host mode hprt0 = 00001101
[    4.152346] mmc0: new high speed SDHC card at address 0001
[    4.173170] mmcblk0: mmc0:0001 00000 29.3 GiB
[    4.192982]  mmcblk0: p1 p2
[    4.198376] mmcblk0: mmc0:0001 00000 29.3 GiB
[    4.368168] usb 1-1: New USB device found, idVendor=0424, idProduct=9514, bcdDevice= 2.00
[    4.379847] usb 1-1: New USB device strings: Mfr=0, Product=0, SerialNumber=0
[    4.389769] hub 1-1:1.0: USB hub found
[    4.395404] hub 1-1:1.0: 5 ports detected
[    4.698123] usb 1-1.1: new high-speed USB device number 3 using dwc_otg
[    4.811278] usb 1-1.1: New USB device found, idVendor=0424, idProduct=ec00, bcdDevice= 2.00
[    4.826560] usb 1-1.1: New USB device strings: Mfr=0, Product=0, SerialNumber=0
[    4.857213] smsc95xx v2.0.0
[    4.992338] SMSC LAN8700 usb-001:003:01: attached PHY driver (mii_bus:phy_addr=usb-001:003:01, irq=199)
[    5.009939] smsc95xx 1-1.1:1.0 eth0: register 'smsc95xx' at usb-3f980000.usb-1.1, smsc95xx USB 2.0 Ethernet, m.m.m.m
[    5.107927] usb 1-1.3: new high-speed USB device number 4 using dwc_otg
[    5.219543] usb 1-1.3: New USB device found, idVendor=05e3, idProduct=0608, bcdDevice=85.36
[    5.234626] usb 1-1.3: New USB device strings: Mfr=0, Product=1, SerialNumber=0
[    5.245544] usb 1-1.3: Product: USB2.0 Hub
[    5.254730] hub 1-1.3:1.0: USB hub found
[    5.262581] hub 1-1.3:1.0: 4 ports detected
[    5.367886] usb 1-1.4: new high-speed USB device number 5 using dwc_otg
[    5.489624] usb 1-1.4: New USB device found, idVendor=0bda, idProduct=8176, bcdDevice= 2.00
[    5.504833] usb 1-1.4: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[    5.504875] usb 1-1.4: Product: 802.11n WLAN Adapter
[    5.504891] usb 1-1.4: Manufacturer: Realtek
[    5.504906] usb 1-1.4: SerialNumber: 00e04c000001
[    5.658567] EXT4-fs (mmcblk0p2): mounted filesystem bb15c8e6-d999-4838-be67-5ff200bffa46 ro with ordered data mode. Quota mode: none.
[    6.568424] systemd[1]: System time before build time, advancing clock.
[    6.883731] NET: Registered PF_INET6 protocol family
[    6.894033] Segment Routing with IPv6
[    6.900669] In-situ OAM (IOAM) with IPv6
[    7.022159] systemd[1]: systemd 252.38-1~deb12u1+rpi1 running in system mode (+PAM +AUDIT +SELINUX +APPARMOR +IMA +SMACK +SECCOMP +GCRYPT -GNUTLS +OPENSSL +ACL +BLKID +CURL +ELFUTILS +FIDO2 +IDN2 -IDN +IPTC +KMOD +LIBCRYPTSETUP +LIBFDISK +PCRE2 -PWQUALITY +P11KIT +QRENCODE +TPM2 +BZIP2 +LZ4 +XZ +ZLIB +ZSTD -BPF_FRAMEWORK -XKBCOMMON +UTMP +SYSVINIT default-hierarchy=unified)
[    7.070387] systemd[1]: Detected architecture arm.
[    7.115049] systemd[1]: Hostname set to <raspi2b>.
[    8.468364] systemd[1]: Queued start job for default target multi-user.target.
[    8.592031] systemd[1]: Created slice system-getty.slice - Slice /system/getty.
[    8.606201] systemd[1]: Created slice system-modprobe.slice - Slice /system/modprobe.
[    8.620597] systemd[1]: Created slice system-serial\x2dgetty.slice - Slice /system/serial-getty.
[    8.637852] systemd[1]: Created slice system-systemd\x2dfsck.slice - Slice /system/systemd-fsck.
[    8.654321] systemd[1]: Created slice user.slice - User and Session Slice.
[    8.666296] systemd[1]: Started systemd-ask-password-console.path - Dispatch Password Requests to Console Directory Watch.
[    8.684607] systemd[1]: Started systemd-ask-password-wall.path - Forward Password Requests to Wall Directory Watch.
[    8.703089] systemd[1]: Set up automount proc-sys-fs-binfmt_misc.automount - Arbitrary Executable File Formats File System Automount Point.
[    8.722947] systemd[1]: Expecting device dev-disk-by\x2dpartuuid-1b26aadb\x2d01.device - /dev/disk/by-partuuid/1b26aadb-01...
[    8.741751] systemd[1]: Expecting device dev-ttyAMA0.device - /dev/ttyAMA0...
[    8.754163] systemd[1]: Reached target cryptsetup.target - Local Encrypted Volumes.
[    8.767188] systemd[1]: Reached target integritysetup.target - Local Integrity Protected Volumes.
[    8.783895] systemd[1]: Reached target network-pre.target - Preparation for Network.
[    8.796970] systemd[1]: Reached target paths.target - Path Units.
[    8.808574] systemd[1]: Reached target slices.target - Slice Units.
[    8.820096] systemd[1]: Reached target swap.target - Swaps.
[    8.830836] systemd[1]: Reached target veritysetup.target - Local Verity Protected Volumes.
[    8.847290] systemd[1]: Listening on systemd-fsckd.socket - fsck to fsckd communication Socket.
[    8.863707] systemd[1]: Listening on systemd-initctl.socket - initctl Compatibility Named Pipe.
[    8.881221] systemd[1]: Listening on systemd-journald-audit.socket - Journal Audit Socket.
[    8.897904] systemd[1]: Listening on systemd-journald-dev-log.socket - Journal Socket (/dev/log).
[    8.914992] systemd[1]: Listening on systemd-journald.socket - Journal Socket.
[    8.929118] systemd[1]: Listening on systemd-udevd-control.socket - udev Control Socket.
[    8.945232] systemd[1]: Listening on systemd-udevd-kernel.socket - udev Kernel Socket.
[    8.959391] systemd[1]: dev-hugepages.mount - Huge Pages File System was skipped because of an unmet condition check (ConditionPathExists=/sys/kernel/mm/hugepages).
[    9.068210] systemd[1]: Mounting dev-mqueue.mount - POSIX Message Queue File System...
[    9.086945] systemd[1]: Mounting sys-kernel-debug.mount - Kernel Debug File System...
[    9.105401] systemd[1]: Mounting sys-kernel-tracing.mount - Kernel Trace File System...
[    9.120110] systemd[1]: auth-rpcgss-module.service - Kernel Module supporting RPCSEC_GSS was skipped because of an unmet condition check (ConditionPathExists=/etc/krb5.keytab).
[    9.148055] systemd[1]: Starting fake-hwclock.service - Restore / save the current clock...
[    9.171624] systemd[1]: Starting keyboard-setup.service - Set the console keyboard layout...
[    9.195059] systemd[1]: Starting kmod-static-nodes.service - Create List of Static Device Nodes...
[    9.219710] systemd[1]: Starting [email protected] - Load Kernel Module configfs...
[    9.243325] systemd[1]: Starting modprobe@dm_mod.service - Load Kernel Module dm_mod...
[    9.266776] systemd[1]: Starting [email protected] - Load Kernel Module drm...
[    9.288757] systemd[1]: Starting modprobe@efi_pstore.service - Load Kernel Module efi_pstore...
[    9.307307] device-mapper: ioctl: 4.48.0-ioctl (2023-03-01) initialised: [email protected]
[    9.315052] systemd[1]: Starting [email protected] - Load Kernel Module fuse...
[    9.342079] systemd[1]: Starting [email protected] - Load Kernel Module loop...
[    9.358849] systemd[1]: systemd-fsck-root.service - File System Check on Root Device was skipped because of an unmet condition check (ConditionPathExists=!/run/initramfs/fsck-root).
[    9.397552] systemd[1]: Starting systemd-journald.service - Journal Service...
[    9.400581] fuse: init (API version 7.41)
[    9.438826] systemd[1]: Starting systemd-modules-load.service - Load Kernel Modules...
[    9.460072] systemd[1]: Starting systemd-remount-fs.service - Remount Root and Kernel File Systems...
[    9.488246] systemd[1]: Starting systemd-udev-trigger.service - Coldplug All udev Devices...
[    9.528501] systemd[1]: Mounted dev-mqueue.mount - POSIX Message Queue File System.
[    9.548079] systemd[1]: Mounted sys-kernel-debug.mount - Kernel Debug File System.
[    9.562198] systemd[1]: Mounted sys-kernel-tracing.mount - Kernel Trace File System.
[    9.576920] systemd[1]: Finished fake-hwclock.service - Restore / save the current clock.
[    9.595147] systemd[1]: Finished kmod-static-nodes.service - Create List of Static Device Nodes.
[    9.600817] EXT4-fs (mmcblk0p2): re-mounted bb15c8e6-d999-4838-be67-5ff200bffa46 r/w. Quota mode: none.
[    9.634025] systemd[1]: [email protected]: Deactivated successfully.
[    9.645099] systemd[1]: Finished [email protected] - Load Kernel Module configfs.
[    9.663120] systemd[1]: modprobe@dm_mod.service: Deactivated successfully.
[    9.673892] systemd[1]: Finished modprobe@dm_mod.service - Load Kernel Module dm_mod.
[    9.688373] systemd[1]: Started systemd-journald.service - Journal Service.
[    9.902886] systemd-journald[243]: Received client request to flush runtime journal.
[    9.960177] systemd-journald[243]: File /var/log/journal/b5c8c11dee5a4c978939990869b73af3/system.journal corrupted or uncleanly shut down, renaming and replacing.
[   11.519503] rpi-gpiomem 3f200000.gpiomem: window base 0x3f200000 size 0x00001000
[   11.528910] rpi-gpiomem 3f200000.gpiomem: initialised 1 regions as /dev/gpiomem
[   11.684759] mc: Linux media interface: v0.10
[   11.692498] snd_bcm2835: module is from the staging directory, the quality is unknown, you have been warned.
[   11.738219] bcm2835-audio bcm2835-audio: card created with 8 channels
[   11.978417] videodev: Linux video capture interface: v2.00
[   12.034708] vc_sm_cma: module is from the staging directory, the quality is unknown, you have been warned.
[   12.035741] bcm2835_vc_sm_cma_probe: Videocore shared memory driver
[   12.035770] [vc_sm_connected_init]: start
[   12.047851] [vc_sm_connected_init]: installed successfully
[   12.080498] bcm2835_mmal_vchiq: module is from the staging directory, the quality is unknown, you have been warned.
[   12.116050] bcm2835_v4l2: module is from the staging directory, the quality is unknown, you have been warned.
[   12.176114] bcm2835_isp: module is from the staging directory, the quality is unknown, you have been warned.
[   12.196648] bcm2835_codec: module is from the staging directory, the quality is unknown, you have been warned.
[   12.258059] bcm2835-isp bcm2835-isp: Device node output[0] registered as /dev/video13
[   12.261284] bcm2835-codec bcm2835-codec: Device registered as /dev/video10
[   12.261369] bcm2835-codec bcm2835-codec: Loaded V4L2 decode
[   12.265303] bcm2835-isp bcm2835-isp: Device node capture[0] registered as /dev/video14
[   12.269804] bcm2835-isp bcm2835-isp: Device node capture[1] registered as /dev/video15
[   12.276904] bcm2835-codec bcm2835-codec: Device registered as /dev/video11
[   12.276986] bcm2835-codec bcm2835-codec: Loaded V4L2 encode
[   12.287958] bcm2835-isp bcm2835-isp: Device node stats[2] registered as /dev/video16
[   12.288029] bcm2835-isp bcm2835-isp: Register output node 0 with media controller
[   12.288069] bcm2835-isp bcm2835-isp: Register capture node 1 with media controller
[   12.288100] bcm2835-isp bcm2835-isp: Register capture node 2 with media controller
[   12.288122] bcm2835-isp bcm2835-isp: Register capture node 3 with media controller
[   12.289005] bcm2835-codec bcm2835-codec: Device registered as /dev/video12
[   12.289090] bcm2835-codec bcm2835-codec: Loaded V4L2 isp
[   12.329514] bcm2835-codec bcm2835-codec: Device registered as /dev/video18
[   12.329588] bcm2835-codec bcm2835-codec: Loaded V4L2 image_fx
[   12.330908] bcm2835-isp bcm2835-isp: Device node output[0] registered as /dev/video20
[   12.331530] bcm2835-isp bcm2835-isp: Device node capture[0] registered as /dev/video21
[   12.332131] bcm2835-isp bcm2835-isp: Device node capture[1] registered as /dev/video22
[   12.332653] bcm2835-isp bcm2835-isp: Device node stats[2] registered as /dev/video23
[   12.332694] bcm2835-isp bcm2835-isp: Register output node 0 with media controller
[   12.332718] bcm2835-isp bcm2835-isp: Register capture node 1 with media controller
[   12.332733] bcm2835-isp bcm2835-isp: Register capture node 2 with media controller
[   12.332749] bcm2835-isp bcm2835-isp: Register capture node 3 with media controller
[   12.333063] bcm2835-isp bcm2835-isp: Loaded V4L2 bcm2835-isp
[   12.346797] bcm2835-codec bcm2835-codec: Device registered as /dev/video31
[   12.351827] bcm2835-codec bcm2835-codec: Loaded V4L2 encode_image
[   12.648347] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[   12.695163] Loaded X.509 cert '[email protected]: 577e021cb980e0e820821ba7b54b4961b8b4fadf'
[   12.697094] Loaded X.509 cert '[email protected]: 3abbc6ec146e09d1b6016ab9d6cf71dd233f0328'
[   12.712760] Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[   12.714853] Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600'
[   13.110483] Console: switching to colour dummy device 80x30
[   13.121593] vc4-drm soc:gpu: bound 3f400000.hvs (ops vc4_hvs_ops [vc4])
[   13.127231] Registered IR keymap rc-cec
[   13.127539] rc rc0: vc4-hdmi as /devices/platform/soc/3f902000.hdmi/rc/rc0
[   13.128250] input: vc4-hdmi as /devices/platform/soc/3f902000.hdmi/rc/rc0/input0
[   13.159614] input: vc4-hdmi HDMI Jack as /devices/platform/soc/3f902000.hdmi/sound/card1/input1
[   13.161012] vc4-drm soc:gpu: bound 3f902000.hdmi (ops vc4_hdmi_ops [vc4])
[   13.161542] vc4-drm soc:gpu: bound 3f004000.txp (ops vc4_txp_ops [vc4])
[   13.161921] vc4-drm soc:gpu: bound 3f206000.pixelvalve (ops vc4_crtc_ops [vc4])
[   13.162262] vc4-drm soc:gpu: bound 3f207000.pixelvalve (ops vc4_crtc_ops [vc4])
[   13.162585] vc4-drm soc:gpu: bound 3f807000.pixelvalve (ops vc4_crtc_ops [vc4])
[   13.162840] vc4-drm soc:gpu: bound 3fc00000.v3d (ops vc4_v3d_ops [vc4])
[   13.191177] [drm] Initialized vc4 0.0.0 for soc:gpu on minor 0
[   13.191838] vc4-drm soc:gpu: [drm] Cannot find any crtc or sizes
[   13.192776] vc4-drm soc:gpu: [drm] Cannot find any crtc or sizes
[   13.436816] rtl8192cu: Chip version 0x10
[   13.918020] hwmon hwmon1: Undervoltage detected!
[   14.105486] rtl8192cu: Board Type 0
[   14.105683] rtl_usb: rx_max_size 15360, rx_urb_num 8, in_ep 1
[   14.105768] rtl8192cu: Loading firmware rtlwifi/rtl8192cufw_TMSC.bin
[   14.106710] ieee80211 phy0: Selected rate control algorithm 'rtl_rc'
[   14.110646] usbcore: registered new interface driver rtl8192cu
[   15.074092] Adding 524284k swap on /var/swap.  Priority:-2 extents:13 across:30023680k SS
[   15.997958] hwmon hwmon1: Voltage normalised
[   17.030143] smsc95xx 1-1.1:1.0 eth0: hardware isn't capable of remote wakeup
[   17.035043] smsc95xx 1-1.1:1.0 eth0: Link is Up - 100Mbps/Full - flow control off
[   17.074595] rtl8192cu: MAC auto ON okay!
[   17.130648] rtl8192cu: Tx queue select: 0x05
[   18.637582] tun: Universal TUN/TAP device driver, 1.6
[   19.640723] wlan0: authenticate with m.m.m.m (local address=m.m.m.m)
[   19.640764] wlan0: send auth to m.m.m.m (try 1/3)
[   19.647009] wlan0: authenticated
[   19.647835] wlan0: associate with m.m.m.m (try 1/3)
[   19.686521] wlan0: RX AssocResp from m.m.m.m (capab=0x1c31 status=0 aid=29)
[   19.895508] wlan0: associated
[   19.896060] wlan0: Limiting TX power to 30 (30 - 0) dBm as advertised by m.m.m.m
[   20.034598] cryptd: max_cpu_qlen set to 1000
[  107.166453] wlan0: deauthenticating from m.m.m.m by local choice (Reason: 3=DEAUTH_LEAVING)
[  107.731353] warning: `iwconfig' uses wireless extensions which will stop working for Wi-Fi 7 hardware; use nl80211
[  110.178005] wlan0: authenticate with m.m.m.m (local address=m.m.m.m)
[  110.178070] wlan0: send auth to m.m.m.m (try 1/3)
[  110.229115] wlan0: authenticated
[  110.237800] wlan0: associate with m.m.m.m (try 1/3)
[  110.331202] wlan0: RX AssocResp from m.m.m.m (capab=0x1c31 status=0 aid=33)
[  110.437491] wlan0: associated
[  110.437909] wlan0: Limiting TX power to 30 (30 - 0) dBm as advertised by m.m.m.m
[  220.136022] wlan0: deauthenticating from m.m.m.m by local choice (Reason: 3=DEAUTH_LEAVING)
[  223.146934] wlan0: authenticate with m.m.m.m (local address=m.m.m.m)
[  223.146990] wlan0: send auth to m.m.m.m (try 1/3)
[  223.154547] wlan0: authenticated
[  223.175836] wlan0: associate with m.m.m.m (try 1/3)
[  223.242115] wlan0: RX AssocResp from m.m.m.m (capab=0x1431 status=0 aid=3)
[  223.349655] wlan0: associated
[  223.417954] wlan0: Limiting TX power to 23 (23 - 0) dBm as advertised by m.m.m.m

更多文章
